Tri-ang Synchrosmoke

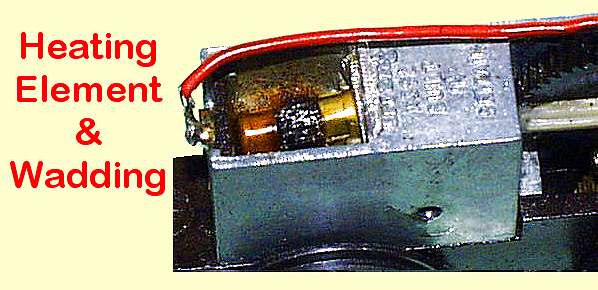

The element was heated by the power picked up by the loco. Smoke Oil was inserted down the chimney through the hole on the cover plate and was retained by the wadding on which the element sat. Sufficient power was needed to heat the element, this could only be achieved by running the loco fairly fast.

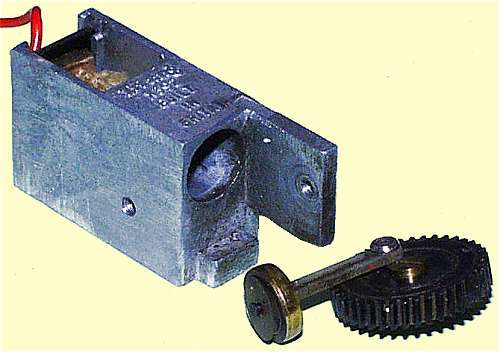

Piston mechanism
